Updating KlevuSettings

16min
KlevuSettings is an object of data passed to the Javascript function klevu(). These settings determine how Klevu Theme JS is configured. Theme JS configuration documentation can be found here https://docs.klevu.com/template-js/configuration.
How Klevu Settings is Generated
The klevuSettings object is generated from a combination of 2 sources.
1) The Klevu\Frontend\Service\KlevuSettingsBuilder which generates an array of settings via di.xml, with each module injecting its own settings.
e.g.
Klevu/Frontend/etc/frontend/di.xml
<type name="Klevu\Frontend\Service\KlevuSettingsBuilder">
    <arguments>
        <argument name="klevuSettings" xsi:type="array">
            <item name="global" xsi:type="array">
                <item name="apiKey" xsi:type="object">Klevu\Frontend\Service\Provider\ApiKeyProvider</item>
                <item name="language" xsi:type="object">Klevu\Frontend\Service\Provider\LanguageProvider</item>
            </item>
        </argument>
        <argument name="isEnabledConditions" xsi:type="array">
            <item name="klevu_integrated"
                  xsi:type="object">Klevu\Frontend\Service\IsEnabledCondition\IsStoreIntegratedCondition</item>
        </argument>
    </arguments>
</type>

<type name="Klevu\Frontend\Service\KlevuSettingsBuilder">
    <arguments>
        <argument name="klevuSettings" xsi:type="array">
            <item name="global" xsi:type="array">
                <item name="apiKey" xsi:type="object">Klevu\Frontend\Service\Provider\ApiKeyProvider</item>
                <item name="language" xsi:type="object">Klevu\Frontend\Service\Provider\LanguageProvider</item>
            </item>
        </argument>
        <argument name="isEnabledConditions" xsi:type="array">
            <item name="klevu_integrated"
                  xsi:type="object">Klevu\Frontend\Service\IsEnabledCondition\IsStoreIntegratedCondition</item>
        </argument>
    </arguments>
</type>
﻿
2) Klevu\Frontend\Service\CustomSettingsBuilder which generates data from the Custom Jsv2 Settings settings in the admin.
They are then combined with any setting from CustomSettingsBuilder overriding KlevuSettingsBuilder
﻿
How KlevuSettings Is Added to head and Passed to Klevu
Klevu Jsv2 settings are added to your page <head> via layout xml here module-m2-frontend/view/frontend/layout/default_head_blocks.xml.
Specifically in block Klevu_Frontend.js_settings which adds 2 empty contain blocks so you can inject your own code before and after klevu(klevuSettings).
The template that generates the settings is module-m2-frontend/view/frontend/templates/html/head/js_settings.phtml.
module-m2-frontend/view/frontend/templates/html/head/js_settings.phtml
<?= $secureRenderer->renderTag(
    tagName: 'script',
    attributes: ['type' => 'text/javascript', 'id' => 'klevu_settings'],
    content: "\nlet klevuSettings = " . $klevuSettings . "\n",
    textContent: false,
) ?>

<?php if (!$viewModel->isSettingsGenerationError()): ?>
    <?php
    /**
     * Inject javascript into klevu_frontend.init_before
     *  to make changes to klevuSettings before passing to klevu()
     */
    ?>
    <?= $block->getChildHtml('klevu_frontend.init_before') ?>

    <?= $secureRenderer->renderTag(
        tagName: 'script',
        attributes: ['type' => 'text/javascript', 'id' => 'klevu_init'],
        content: "\nif(typeof klevuSettings !== 'undefined'){klevu(klevuSettings);}\n",
        textContent: false,
    ) ?>
    ...
<?= $secureRenderer->renderTag(
    tagName: 'script',
    attributes: ['type' => 'text/javascript', 'id' => 'klevu_settings'],
    content: "\nlet klevuSettings = " . $klevuSettings . "\n",
    textContent: false,
) ?>

<?php if (!$viewModel->isSettingsGenerationError()): ?>
    <?php
    /**
     * Inject javascript into klevu_frontend.init_before
     *  to make changes to klevuSettings before passing to klevu()
     */
    ?>
    <?= $block->getChildHtml('klevu_frontend.init_before') ?>

    <?= $secureRenderer->renderTag(
        tagName: 'script',
        attributes: ['type' => 'text/javascript', 'id' => 'klevu_init'],
        content: "\nif(typeof klevuSettings !== 'undefined'){klevu(klevuSettings);}\n",
        textContent: false,
    ) ?>
    ...
﻿
﻿
Making Changes to the KlevuSettings Object
There are 3 ways to make changes to this object:
﻿Set the value in the admin.
Use this if the value:
does not change based on any business logic.
does not depend on any frontend element.
﻿Set the value via your theme.
Use this if the value:
is different depending on the theme (you use multiple themes in your store).
depends on an element on the frontend of your store that you can access via javascript.
﻿Set the value via a custom module.
Use this if the value:
depends on values stored in your database.
depends on more complex business logic.
depends on an element on the frontend of your store that you can access via javascript, you have multiple themes on your site and you need to apply the change to them all.
In reality you will likely use a combination of all 3, some set in the admin, some set in theme  or module templates that may use a ViewModel defined in your customer module.
Adding Klevu Theme Settings Via Admin
JSv2 settings NOT found in Stores > Configuration > Klevu Section
Magento already has a setting for these, so we’re using the existing settings rather than duplicating them and causing potential confusion.
Minimum characters used in search, Stores > Configuration > Catalog > Catalog > Search > Minimal Query Length
Maximum characters used in search, Stores > Configuration > Catalog > Catalog > Search > Maximum Query Length
Language, Stores > Configuration > General > Locale Options > Locale
JSv2 settings in Stores > Configuration > Klevu Section
All JSv2 settings in config can be overwritten by using Stores > Configuration > Klevu > Developer Settings > Frontend > Custom JSv2 Settings.

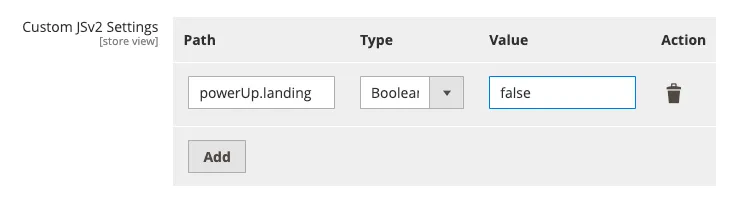

e.g. if you need to defer the powerUp of the SRLP you can do that here. Set path = powerUp.landing, type=boolean, value=false.
A list of available settings can be found here https://docs.klevu.com/template-js/configuration﻿
Custom JSv2 Settings
﻿
There are 2 settings we have given their own fields within Stores > Configuration > Klevu > Developer Settings > Frontend. They are
Search Box Selector: The id, class, or handle used to bind the search input field. This is equivalent to setting search.searchBoxSelector in Custom Jsv2 Options.
Search Query Parameter: The query parameter appended to the SRLP URL. This is equivalent to setting url.queryParam in Custom Jsv2 Options.
Note: Any values set in Custom JSv2 Settings will override values set in di.xml
After changing any configuration settings, please remember to clear the Config cache.
﻿
Adding Klevu Theme Settings Via Theme
﻿Magento theme structure documentation.
Sometimes setting these values via the admin is not an option.
You may need to:
use Javascript to get an element from the page
have different settings for different themes within the same store.
Change KlevuSettings Before They are Passed to klevu()
In your theme create a module Klevu_Frontend, app/code/design/frontend/Vendor/theme/Klevu_Frontend
Create a layout file to add your blocks to our contain klevu_frontend.init_before
app/code/design/frontend/Vendor/theme/Klevu_Frontend/layout/default_head_blocks.xml
app/code/design/frontend/Vendor/theme/Klevu_Frontend/layout/default_head_blocks.xml
<?xml version="1.0"?>
<page xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
      xsi:noNamespaceSchemaLocation="urn:magento:framework:View/Layout/etc/page_configuration.xsd">
    <body>
        <referenceContainer name="klevu_frontend.init_before">
            <block name="Vendor_Theme.klevu.init_before"
                   template="Klevu_Frontend::klevu/init_before.phtml"
                   before="-"/>
        </referenceContainer>
    </body>
</page>
<?xml version="1.0"?>
<page xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
      xsi:noNamespaceSchemaLocation="urn:magento:framework:View/Layout/etc/page_configuration.xsd">
    <body>
        <referenceContainer name="klevu_frontend.init_before">
            <block name="Vendor_Theme.klevu.init_before"
                   template="Klevu_Frontend::klevu/init_before.phtml"
                   before="-"/>
        </referenceContainer>
    </body>
</page>
﻿
3. Create the template file that will contain your customisations
app/code/design/frontend/Vendor/theme/Klevu_Frontend/templates/klevu/init_before.phtml
app/code/design/frontend/Vendor/theme/Klevu_Frontend/templates/klevu/init_before.phtml
<?php

use Magento\Framework\View\Helper\SecureHtmlRenderer;

/**
 * @var SecureHtmlRenderer $secureRenderer
 */

/** add your customisation e.g */
$scriptString = <<<script

klevu.setObjectPath(
    klevuSettings, // the object of settings we wish to amend
    'search.showQuickOnEnter', // the path in the object we wish to add/amend
    klevu.toBoolean(true) // the value to set
);

script;
?>

<?php /** Render the script tag */ ?>
<?= $secureRenderer->renderTag(
    tagName: 'script',
    attributes: ['type' => 'text/javascript'],
    content: $scriptString,
    textContent: false
) ?>

<?php

use Magento\Framework\View\Helper\SecureHtmlRenderer;

/**
 * @var SecureHtmlRenderer $secureRenderer
 */

/** add your customisation e.g */
$scriptString = <<<script

klevu.setObjectPath(
    klevuSettings, // the object of settings we wish to amend
    'search.showQuickOnEnter', // the path in the object we wish to add/amend
    klevu.toBoolean(true) // the value to set
);

script;
?>

<?php /** Render the script tag */ ?>
<?= $secureRenderer->renderTag(
    tagName: 'script',
    attributes: ['type' => 'text/javascript'],
    content: $scriptString,
    textContent: false
) ?>
﻿
﻿
Adding Klevu Theme Settings Via A Custom Module
Note the example below we have used Module Vendor_Module.
Magento module creation documentation.
To add a new setting to klevuSettings before the object is output to the page you can add to the KlevuSettingsBuilder via frontend di.xml.
It is possible to set boolean, const, number and string in the XML, though these can also be set in the admin.
Note: Any values set in Custom JSv2 Settings will override values set here via di.xml
Vendor/Module/etc/frontend/di.xml
Vendor/Module/etc/frontend/di.xml
<type name="Klevu\Frontend\Service\KlevuSettingsBuilder">
    <arguments>
        <argument name="klevuSettings" xsi:type="array">
            <item name="search" xsi:type="array">
                <item name="searchBoxTarget" xsi:type="boolean">true</item>
                <item name="maxChars" xsi:type="number">5</item>
                <item name="documentClickPreventSelector" xsi:type="string">#someId</item>
            </item>
            <item name="url" xsi:type="array">
                <item name="queryParam" xsi:type="string">queryParam</item>
            </item>
        </argument>
    </arguments>
</type>
<type name="Klevu\Frontend\Service\KlevuSettingsBuilder">
    <arguments>
        <argument name="klevuSettings" xsi:type="array">
            <item name="search" xsi:type="array">
                <item name="searchBoxTarget" xsi:type="boolean">true</item>
                <item name="maxChars" xsi:type="number">5</item>
                <item name="documentClickPreventSelector" xsi:type="string">#someId</item>
            </item>
            <item name="url" xsi:type="array">
                <item name="queryParam" xsi:type="string">queryParam</item>
            </item>
        </argument>
    </arguments>
</type>
﻿
<argument name="klevuSettings" xsi:type="array"> contains all the data output as klevuSettings.
The names of the items make up the paths in klevuSettings.
The generated output of the above XML would be
JS
klevuSettings = {
    search: {
        searchBoxTarget: true,
        maxChars: 5,
        documentClickPreventSelector: "#someId"
    },
    url : {
        queryParam: "queryParam"
    }
};
klevuSettings = {
    search: {
        searchBoxTarget: true,
        maxChars: 5,
        documentClickPreventSelector: "#someId"
    },
    url : {
        queryParam: "queryParam"
    }
};
﻿
More interesting though is the ability to pass an instance of Klevu\FrontendApi\Service\Provider\SettingsProviderInterface
e.g.
Vendor/Module/etc/frontend/di.xml
<type name="Klevu\Frontend\Service\KlevuSettingsBuilder">
    <arguments>
        <argument name="klevuSettings" xsi:type="array">
            <item name="search" xsi:type="array">
                <item name="searchBoxSelector" xsi:type="object">Vendor\Module\Service\Provider\YourProvider</item>
            </item>
        </argument>
    </arguments>
</type>
<type name="Klevu\Frontend\Service\KlevuSettingsBuilder">
    <arguments>
        <argument name="klevuSettings" xsi:type="array">
            <item name="search" xsi:type="array">
                <item name="searchBoxSelector" xsi:type="object">Vendor\Module\Service\Provider\YourProvider</item>
            </item>
        </argument>
    </arguments>
</type>
﻿
If the provider returns a value from core_config_data you can create a virtualType for Klevu\Frontend\Service\Provider\SettingsProvider and pass it the path and return type.
Vendor/Module/etc/frontend/di.xml
<virtualType name="Vendor\Module\Service\Provider\YourProvider"
    type="Klevu\Frontend\Service\Provider\SettingsProvider">
    <arguments>
        <argument name="path" xsi:type="string">path/to_your/setting</argument>
        <argument name="returnType"
                  xsi:type="const">Klevu\Frontend\Block\Adminhtml\Form\Field\TypeColumn::TYPE_VALUE_STRING</argument>
    </arguments>
</virtualType>
<virtualType name="Vendor\Module\Service\Provider\YourProvider"
    type="Klevu\Frontend\Service\Provider\SettingsProvider">
    <arguments>
        <argument name="path" xsi:type="string">path/to_your/setting</argument>
        <argument name="returnType"
                  xsi:type="const">Klevu\Frontend\Block\Adminhtml\Form\Field\TypeColumn::TYPE_VALUE_STRING</argument>
    </arguments>
</virtualType>
﻿
Valid returnType are TYPE_VALUE_BOOLEAN, TYPE_VALUE_INTEGER, and TYPE_VALUE_STRING.
If your provider requires more business logic, create the class that implements Klevu\FrontendApi\Service\Provider\SettingsProviderInterface.
Vendor/Module/Service/Provider/YourProvider.php
<?php

declare(strict_types=1);

namespace Vendor\Module\Service\Provider;

use Klevu\FrontendApi\Service\Provider\SettingsProviderInterface;

class YourProvider implements SettingsProviderInterface
{
    public function get(): string|int|bool|null
    {
        // add your logic
    }
}
<?php

declare(strict_types=1);

namespace Vendor\Module\Service\Provider;

use Klevu\FrontendApi\Service\Provider\SettingsProviderInterface;

class YourProvider implements SettingsProviderInterface
{
    public function get(): string|int|bool|null
    {
        // add your logic
    }
}
﻿
Settings Provider Examples
Klevu\Frontend\Service\Provider\ApiKeyProvider
Klevu\FrontendSearch\Service\Provider\LandingUrlProvider
Klevu\FrontendCategoryNavigation\Service\Provider\LandingInfiniteScrollOffsetProvider
Your provider may throw an exception of type Klevu\Frontend\Exception\OutputDisabledException.
This will prevent the setting from being added to the output.
﻿
Updated 02 Oct 2024
Did this page help you?
Search Theme Layout
Adding Code After Klevu()
